STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm

STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm
STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm
Basic Information
Place of Origin: China
Brand Name: RFan
Certification: UL.TUV.ROHS
Model Number: STB1150
Minimum Order Quantity: 6000
Price: negotiable
Packaging Details: 3000/Box
Delivery Time: 5-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1KK/M
Get Best Price Contact Now
Detail Information
Highlight:

Time Lag Subminiature Fuses

,

Axial Lead Slow Blow Fuse

,

Subminiature Fuses 3.5A

Product Description

STB Series 3x7mm Time-Lag Subminiature Fuses

STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm 0

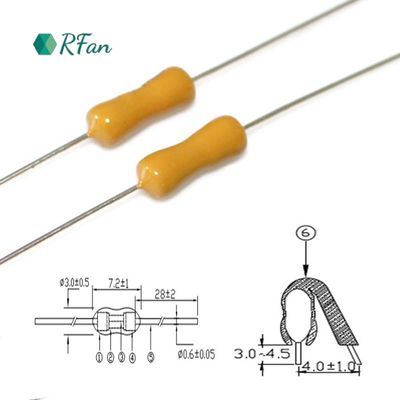

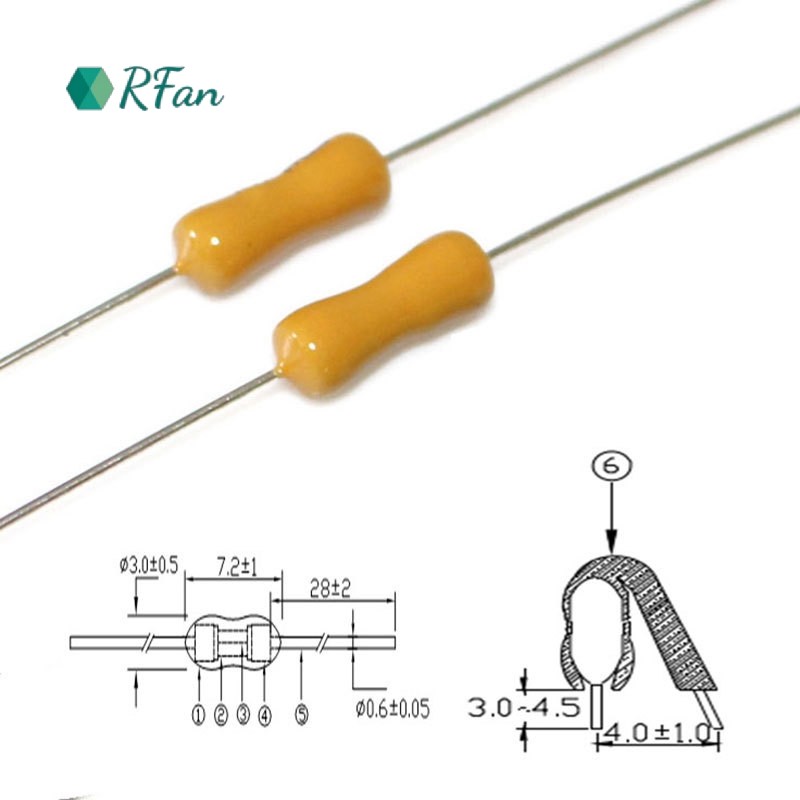

●Dimensions

STB1350 Time Lag Subminiature Fuses Axial Lead Slow Blow Fuse 3.5A 250V 3x7mm 1
●Materials




Part Name Material
Body Encapsulated Epoxy Coated
Lead wire Tin Plated Copper
Cap NickelPlated Brass
Fuse element Alloy wire
Body Non-TransparentCeramic Tube

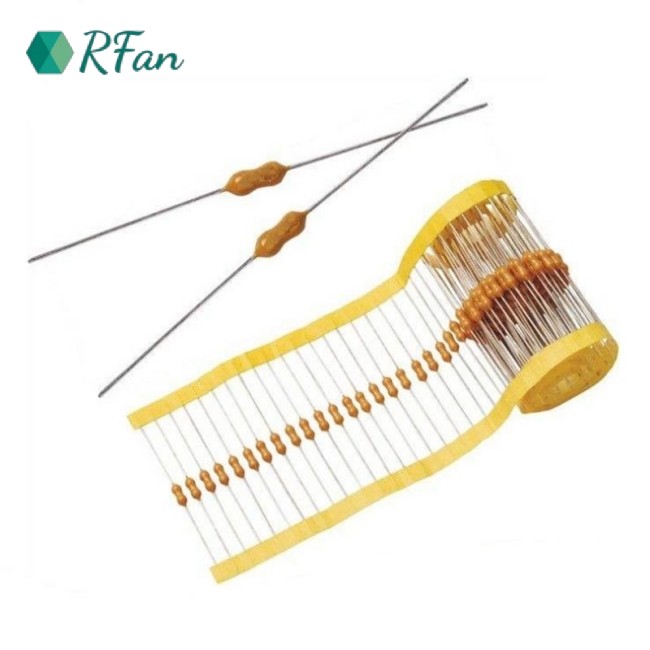

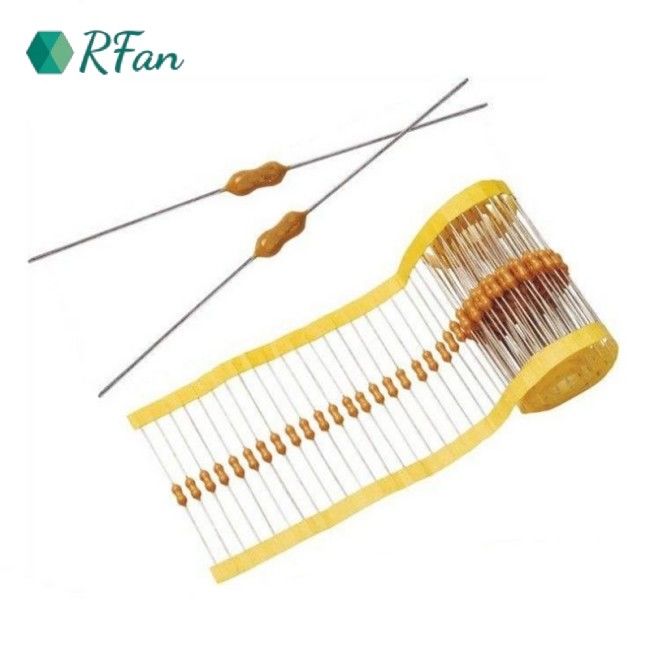

●Packaging



Packing type Description

Bulk

 1,000PCS per bag
Tape 3,000PCS per box


●Electrical Characteristics

%of Ampere Rating(In) Blowing Time
100%*In (4 hours Min)
200%*In (60 sec Max)



●Fuse List







Catalog Number Am pere Rating Voltage Rating Breaking Capacity
STB0100A/B 100mA 250V/125V 50A@125V/250VAC
STB0125A/B 125mA 250V/125V 50A@125V/250VAC
STB0160A/B 160mA 250V/125V 50A@125V/250VAC
STB0200A/B 200mA 250V/125V 50A@125V/250VAC
STB0250A/B 250mA 250V/125V 50A@125V/250VAC
STB0300A/B 300mA 250V/125V 50A@125V/250VAC
STB0315A/B 315mA 250V/125V 50A@125V/250VAC
STB0350A/B 350mA 250V/125V 50A@125V/250VAC
STB0400A/B 400mA 250V/125V 50A@125V/250VAC
STB0500A/B 500mA 250V/125V 50A@125V/250VAC
STB0630A/B 630mA 250V/125V 50A@125V/250VAC
STB0750A/B 750mA 250V/125V 50A@125V/250VAC
STB0800A/B 800mA 250V/125V 50A@125V/250VAC
STB1100A/B 1A 250V/125V 50A@125V/250VAC
STB1125A/B 1.25A 250V/125V 50A@125V/250VAC
STB1150A/B 1.5A 250V/125V 50A@125V/250VAC
STB1160A/B 1.6A 250V/125V 50A@125V/250VAC
STB1200A/B 2A 250V/125V 50A@125V/250VAC
STB1250A/B 2.5A 250V/125V 50A@125V/250VAC
STB1300A/B 3A 250V/125V 50A@125V/250VAC
STB1315A/B 3.15A 250V/125V 50A@125V/250VAC
STB1350A/B 3.5A 250V/125V 50A@125V/250VAC
STB1400A/B 4A 250V/125V 50A@125V/250VAC
STB1500A/B 5A 250V/125V 50A@125V/250VAC
STB1630A/B 6.3A 250V/125V 50A@125V/250VAC
