Small Round Patch SMD Varistor Surface Mount For Suppressing Current In LED

Basic Information

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.TUV.ROHS
Model Number:	5D271

Minimum Order Quantity:	4000PCS
Price:	0.03-0.5
Packaging Details:	4000/Bag
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1KK/M

Get Best Price Contact Now

Detail Information

Highlight:

Round Patch SMD Varistor

LED SMD Varistor

Small SMD Varistor

Product Description

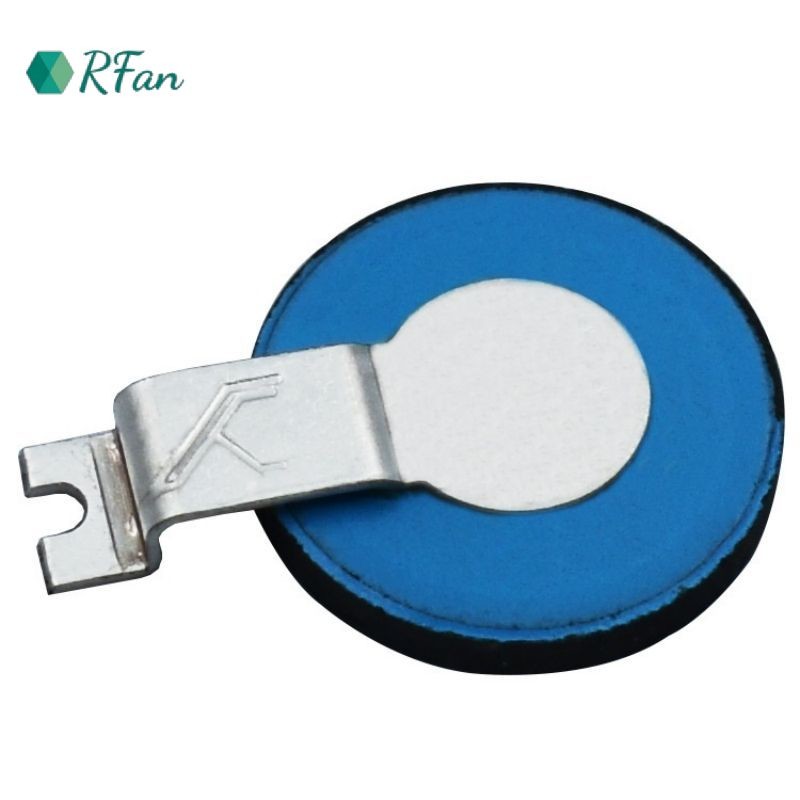

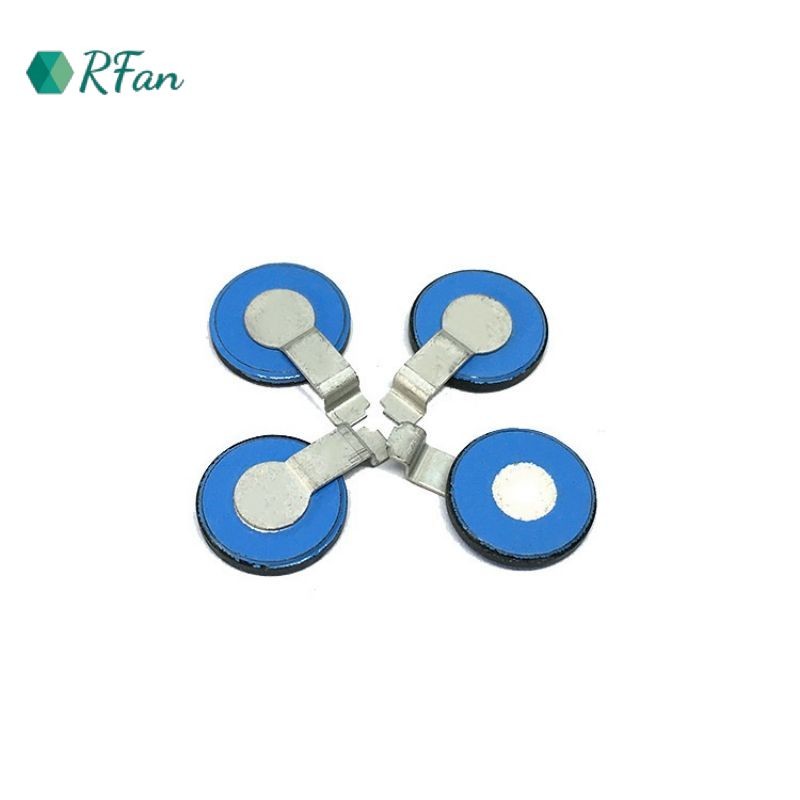

Small Round Patch SMD Varistor Surface Mount For Suppressing Current In LED 0

BLUE271:275VDC±10%
WHITE471:470VDC±10%
YELLOW511:510VDC±10%
RED561:560VDC±10%

Product size:

Small Round Patch SMD Varistor Surface Mount For Suppressing Current In LED 3

PadA

PadB

Pad center distanceC

DiameterD

WidthH

ThicknessT

备注

φa

5D271

2.7

3.5

2.5

5.75

5.0

9.1

2.0

Blue 271

White 471

Yellow 511

Red 561

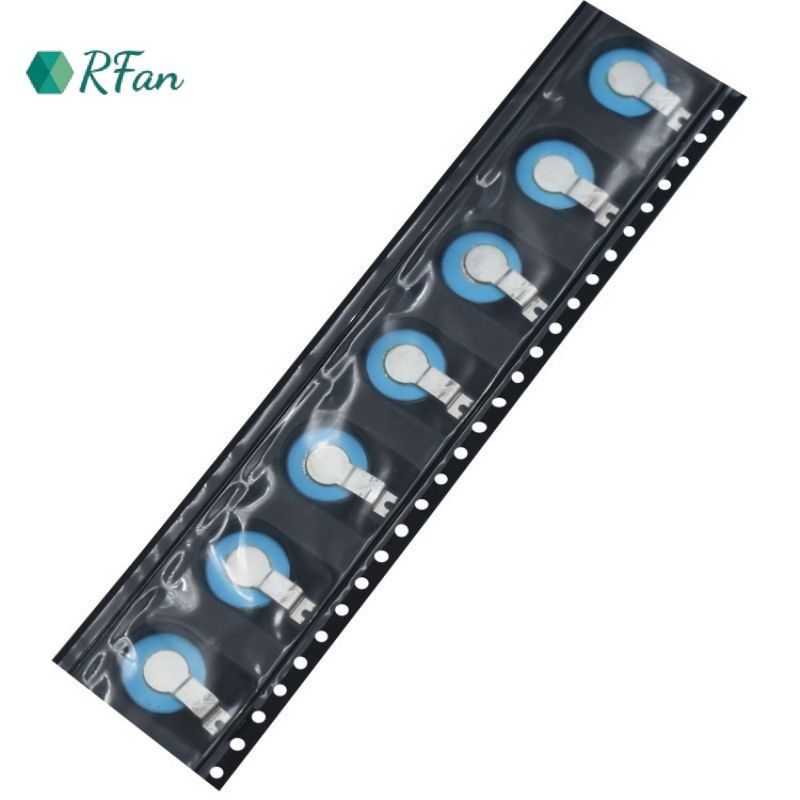

15-inch reel with tape closure

5D2714000PCS 7D2713000PCS

10D2712000PCS 5D-3000PCS

7D-2000PCS

10D-1500PCS

5D471 5D511

3.0

7D271

3.3

3.8

2.5

6.75

7.0

11.1

2.0

7D471 7D511 7D561

3.0

10D271

4.0

2.5

8.25

10.0

14.2

2.0

10D471 10D511 10D561

3.0

Electrical performance

NO	Voltage-sensitive (VDC)	Max allowable return voltage		Max limiting voltage (8/20us)		Max flow energy	Max static power	Capacitance	Leakage current	Certified temperature ℃
NO	Voltage-sensitive (VDC)	VAC	VDC	VDC	Alp	A	W	pF	≤20uA	-40~125
5D271	270±10%	170	220	480	8A	5A (1000V)	0.1	100
5D471	470±10%	300	380	810	10A	5A (1000V)	0.1	5 0.
5D511	510±10%	325	415	870	10A	5A (1000V)	0.1	60
7D271	270±10%	170	220	450	15A	1.0KA (2000V)	0.25	170
7D471	470±10%	300	380	770	20A	1.0KA (2000V)	0.25	115
7D511	510±10%	325	415	840	20A	1.0KA (2000V)	0.25	110
7D561	560±10%	350	450	925	20A	1.0KA (2000V)	0.25	100
10D271	270±10%	170	220	450	35A	2.0KA (4000V)	0.4	380
10D471	470±10%	300	380	760	40A	2.0KA (4000V)	0.4	250
10D511	510±10%	325	415	835	40A	2.0KA (4000V)	0.4	230
10D561	560±10%	350	450	920	40A	4.0KA (2000V)	0.4	210

Application:

Small Round Patch SMD Varistor Surface Mount For Suppressing Current In LED 4
