Description:

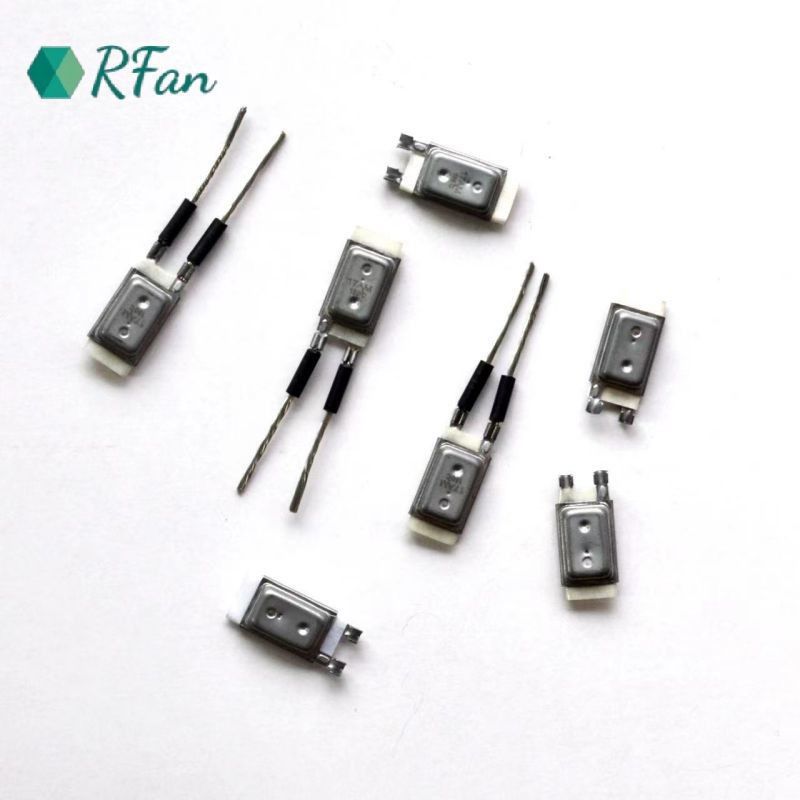

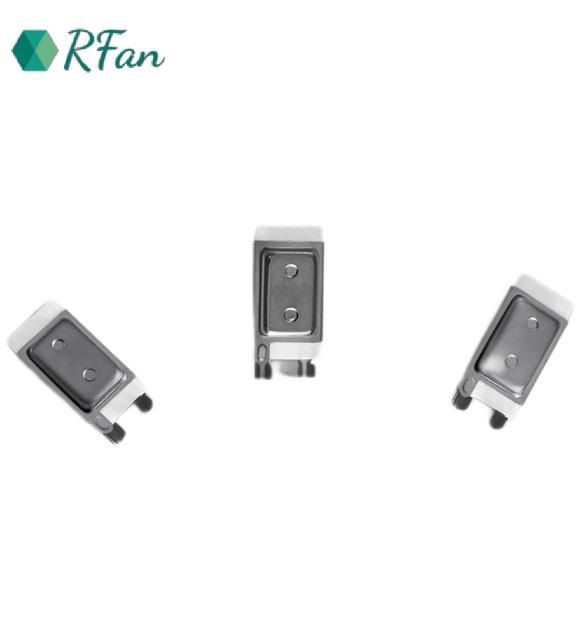

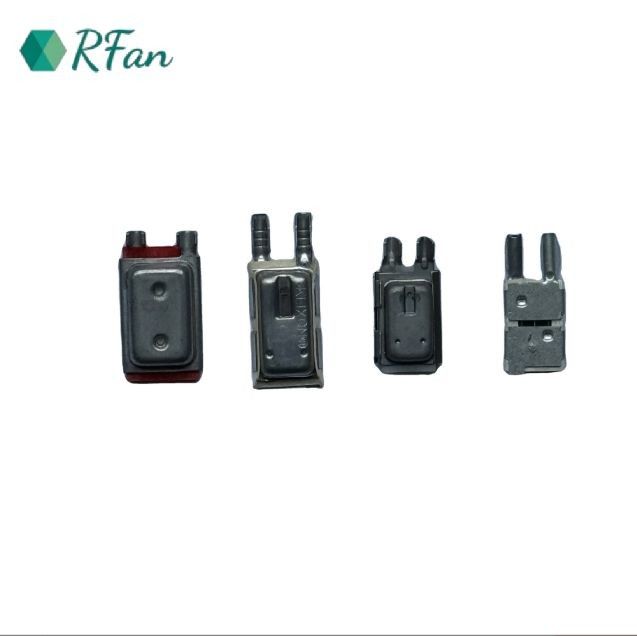

7MP current and temperature dual protector is a protection element with both over-current and temperature-sensitive dual protection functions. It can precisely control the damage of the motor caused by the blocking or over-current. The auxiliary heating plate in the thermal protector is matched with the bimetallic plate. The utility model has the function of accurately controlling the overloading current escape time. When (motor, transformer...) in the current is too large or the blocking current exceeds the set value of the thermal protector, the protector can instantly cut off the circuit, so that electrical protection. When the temperature of the protected appliance drops to the safe temperature, the contact of the thermal protector automatically closes and resets. Re-turn on the power supply, electrical resume work.
Dimension (Unit mm):Main Technical Parameters:
Rated voltage/current:115V/250VAC 3A/30A 0V-30VDC 3A-45A 3.2
Contact capacity:18A@cos0.6/250Vac/300 cycles
Action temperature:XXX℃±5℃
Reset temperature:XX-XX℃
Disconnection time:X-XS
Tensile test: the terminal of the product should be able to withstand more than or equal to 50N tensile force, riveting line should not be loosened, wire without fracture, slip out.
Insulation Voltage:
a. The thermal protector should be able to withstand AC660V for 1 min without breakdown flashover between the wires after thermal break. b.The lead wire of the thermal protector should be able to withstand AC1500V and last 1 min without breakdown flashover
Insulation Resistance: under normal conditions, the insulation resistance between the conductor and the insulating sleeve is above 100MΩ. (used as DC500V insulation resistance meter)
Heat resistance test: the monomer product was left at 150 ° C for 96 hours.
Moisture resistance test: the product is placed in the environment of 40 ° C, relative humidity 95% for 48 hours.
Thermal shock test: the monomer product was placed in 150 ° C, -20 ° C environment for 30 min, a total of 5 cycles.
Dryer motor.
