Detail Information

Reset Temperature:	Less Than 85% Of Rated Temperature	Certifications:	UL, CSA, VDE, CQC
Product Type:	Electrical Components	Rated Voltage:	250V AC
Response Time:	Less Than 5 Seconds	Rated Current:	10A
Model:	TF Cutoff	Terminal Type:	Axial Lead
Insulation Resistance:	More Than 100MΩ	Dielectric Strength:	AC 1500V For 1 Minute
Highlight:	Jump KSD301 Thermostat , KSD301 Thermostat Thermal Cutoff , Water Dispensers KSD301 Thermostat

Product Description

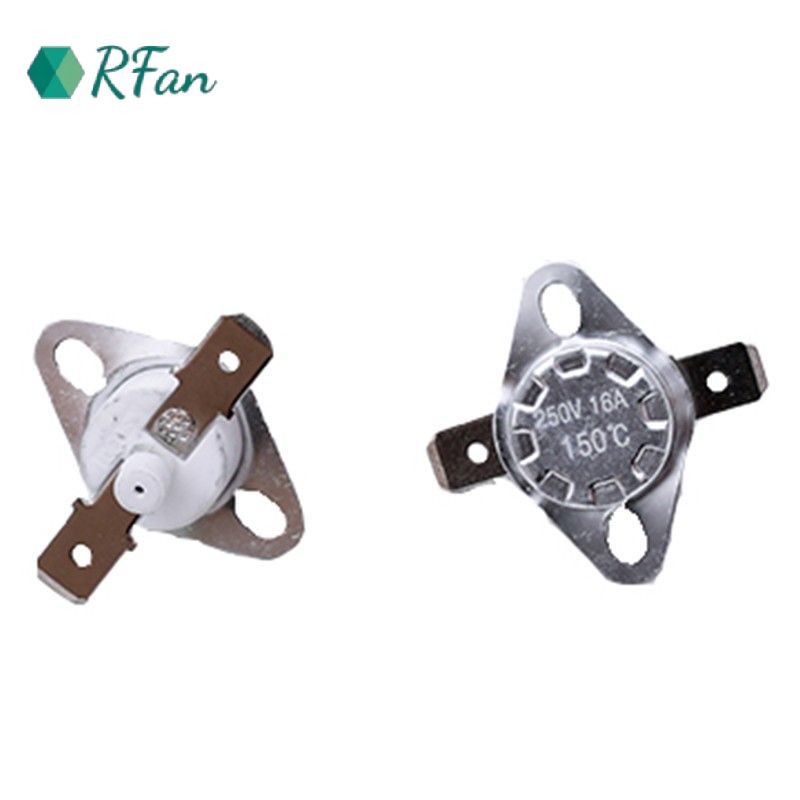

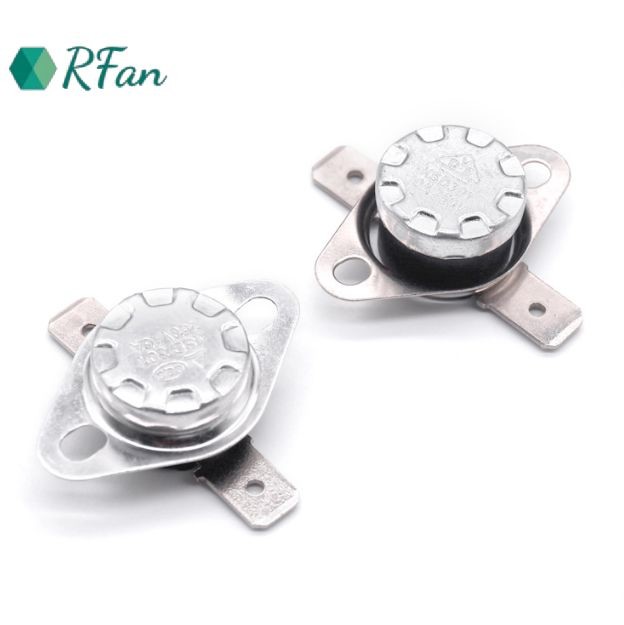

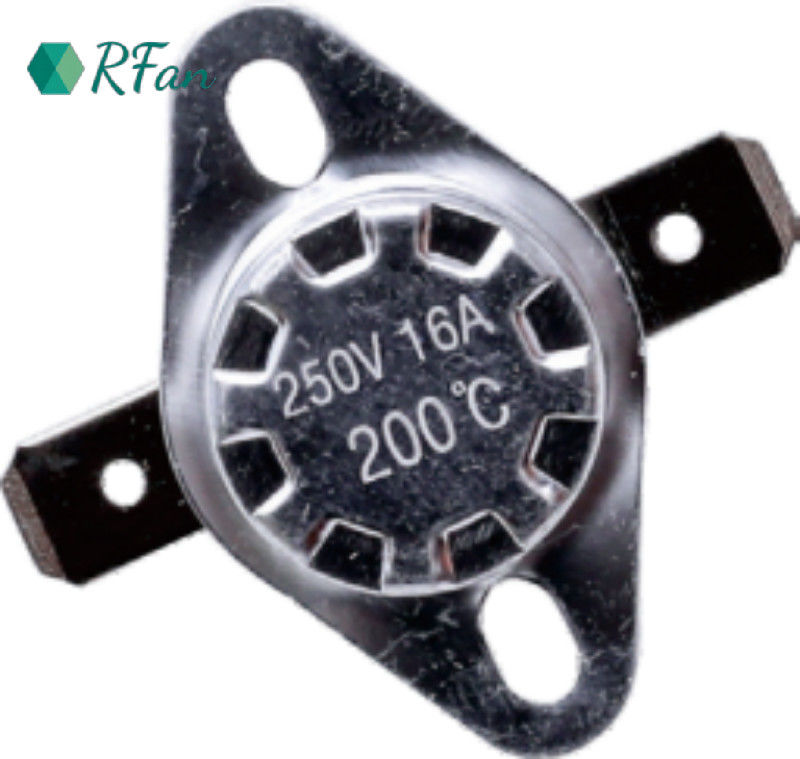

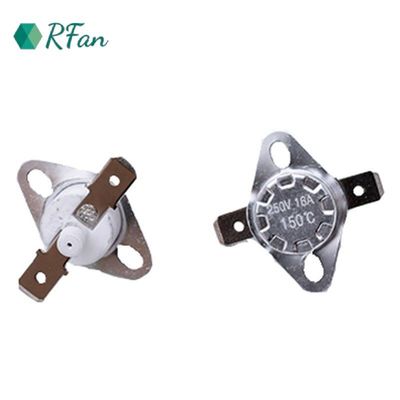

KSD301 Series 50-160℃ Jump Thermostat Thermal Safety Cutoff For Water Dispensers And Heaters

Description:

KSD301 Jump thermostat is a bimetal plate after the temperature as a sensitive reaction element, when the temperature rises the heat generated to the bimetal plate, when the temperature reaches the rated action temperature of the product, the bimetal plate moves rapidly, disconnects the contact and cuts off the circuit. When the temperature drops to the rated reset temperature of the product, the bimetal sheet quickly recovers, and the power supply is switched on to cycle.

50-160℃ Jump KSD301 Thermostat Thermal Cutoff For Water Dispensers And Heaters 0 Dimension (Unit mm):

50-160℃ Jump KSD301 Thermostat Thermal Cutoff For Water Dispensers And Heaters 1

Action temperature	Reset temperature	Action temperature	Reset temperature	Action temperature	Reset temperature	Action temperature	Reset temperature
50±5℃	35±10℃	80±5℃	65±10℃	65±10℃	90±10℃	140±5℃	110±10℃
55±5℃	40±10℃	85±5℃	70±10℃	70±10℃	90±10℃	145±5℃	120±10℃
60±5℃	40±10℃	90±5℃	75±10℃	75±10℃	90±10℃	150±5℃	120±10℃
65±5℃	50±10℃	95±5℃	80±10℃	80±10℃	95±10℃	155±5℃	125±10℃
70±5℃	55±10℃	100±5℃	85±10℃	85±10℃	100±10℃	160±5℃	125±10℃
75±5℃	60±10℃	105±5℃	90±10℃	90±10℃	105±10℃

Applications:

coffee machines,

microwave ovens,

air conditioners,

heating ventilation equipment,

heaters,

showers,

electric water bottles,

water dispensers,

heaters. 50-160℃ Jump KSD301 Thermostat Thermal Cutoff For Water Dispensers And Heaters 2

Tag:

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.CE.TUV.ROHS
Model Number:	BW-02

Minimum Order Quantity:	1000
Price:	0.3-0.6
Packaging Details:	1000/Bag
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1KK/M
