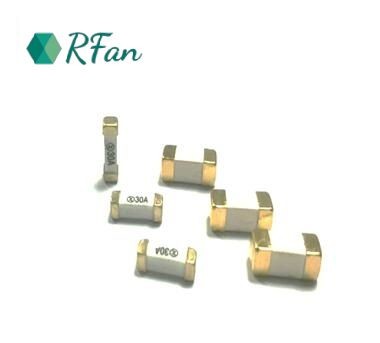

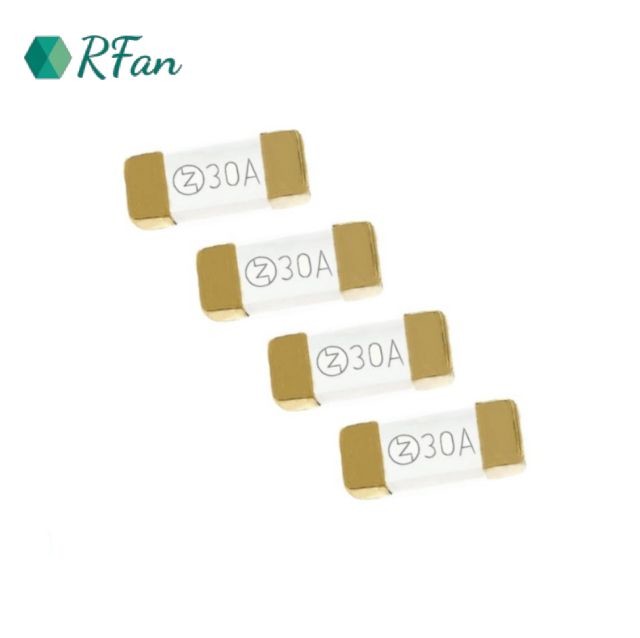

Name: R1032.30A Ceramic Patch SMD Fuse 125V/250V/300V DC For Circuit Protection
Brand: Yantai Rongfan Electronic Technology Co., Ltd
SKU: 1032
Price: 0.02 USD
Availability: InStock

R1032.30A Ceramic Patch SMD Fuse 125V/250V/300V DC For Circuit Protection

Basic Information

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.CE.TUV.ROSH
Model Number:	1032

Minimum Order Quantity:	3000
Price:	0.02-0.9
Packaging Details:	3000/Bag
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1KKpcs/month

Get Best Price Contact Now

Detail Information

Voltage Rating:	125V	Mounting Type:	Surface Mount
Design:	Solder-free	Mounting Style:	SMD
Breaking Capacity:	100A	Automatic Reset Function:	None
Highlight:	R1032.30A SMD Fuse , Circuit Protection SMD Fuse , 300V DC SMD Fuse

Product Description

SMD Fuses R1032.30A 125V/250V/300V DC Fast-Acting Surface Mount Fuse Ceramic Patch Fuses For Circuit Protection

Description

R1032 Series fast-acting square Surface Mount fuses are ceramic tube/ end cap constructions,RoHS compliant,Halogen Free and lead-free, with U.S.(UL/CSA)safety agency approvals.Provide board level primary and secondary circuit protection in a wide variety of applications,end caps are available in copper or silver plated

Electrical Characteristics(UL/CSA,248-14)File No.E340427

Amnere Rating	of current Rating	Blowing Time
0.05A-15A/20A-40A	100%	>4hours
0.05A-15A/20A-40A	200%	<60 sec

Features

·Lead-Free and RoHS compliant

·(Inrush withstand capability

·Wide range of current rating

·Excellent environmental integrity

·Operating temperaturerange-55℃ to+125℃(consider de-rating)

Applications

·(Office electronic equipment

)

·LED driver

·PC computer

·Notebook/Laptops

·Digital camera

·LCD/LED monitor/TV/backlight inverter

·Industrial equipment

·Networking device

·Telecom device

Catalog Number	Ampere Rating(A)	Voltage Raling(V)	Interrupting Rating
R1032.* R1032E.* R1032T.***	0.050	32V 63V 72V 100V 125V 250V 350V 400V	1000A@32V 150A@63V/72V/100V/125V 50A@350V/400V
	0.062
	0.080
	0.100
	0.125
	0.200
	0.250
	0.300
	0.375
	0.400
	0.500
	0.600
	0.630
	0.700
	0.750
	0.800
	1
	1.25
	1.5
	2

Catalog Number	Ampere Rating(A)	Voltage Rating(V)	Interrupting Rating
R1032.* R1032E.* R1032T.***	2.5	32V 63V 72V 100V 125V 250V 350V 400V	1000A@32V 150A@63V/72v/100V/125V 50A@350V/400V
	3
	3.15
	3.5
	4
	5
	6
	6.3
	7
	7.5
	8
	10
	12
	15
	20
	25
	30
	40 南

Dimension (Unit:mm)

R1032.30A Ceramic Patch SMD Fuse 125V/250V/300V DC For Circuit Protection 0

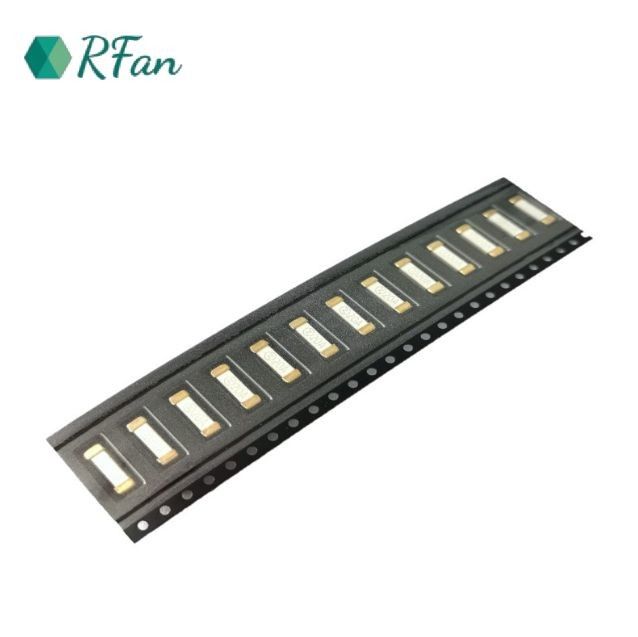

Packaging

2,000 pcs per reel

R1032.30A Ceramic Patch SMD Fuse 125V/250V/300V DC For Circuit Protection 1
