Name: Fast Acting SMD Fuse 1206 1A 2A 3A 4A 5A 72V 63V Surface Mount Chip Fuses
Brand: Yantai Rongfan Electronic Technology Co., Ltd
SKU: 1206
Price: 0.02 USD
Availability: InStock

Detail Information

Voltage Rating:	125V	Mounting Type:	Surface Mount
Design:	Solder-free	Mounting Style:	SMD
Breaking Capacity:	100A	Automatic Reset Function:	None
Highlight:	Fast Acting SMD Fuse 1206 , 63V Surface Mount Chip Fuses , 5A Surface Mount Chip Fuses

Product Description

Fast Acting SMD Fuses 1206 1A 2A 3A 4A5A72V63V Surface Mount Fuse Chip Fuses

1206 Fast Acting SMD Fuses

R12.000 Series

Description

R12.000 Series fast-acting chip fuses help provide over current protection for systems using DC power sources up to 72VDC.Help provide higher hold current in the smaller footprint,improve product reliability and quality,enhance high-temperature performance in a wide range of circuit designs.

Electrical Characteristics
Rated Current	%of Amp Rating	Opening Time
250mA-30A	100%	houts 0ml0
1A-3A	200%	1.0s-60s
1A-5A	250%	5.0s max
1A-5A	300%	0.1s-3.0s
250mA-750mA	350%	5.0s max
6A~30A	350%	5.0s max
250mA-30A	1000%	0.2ms-20.0ms

Features

·Lead-Free and RoHS compliant

·High inrush current withstanding capability

·Compatible with reflow and wave solder

·Excellent environmental integrity
·One time positive disconnect

·(Suitable for rated current of 250mA-30A

·Operating temperature range-55℃ to+125℃(consider de-rating)

Applications

Game systems··

Portable electronics

LCD monitors

Scanners

USB charger

Laptops
Digltal cameras

Cell phones

Printers

Specification
Part No	Rated Vollane				Rated Current (A)	Breaking Capacity(A)			Typicai Cold. Resistance (mOhms)	TypicalVoltage Drop(mV)	Typical Pro- Arcinglt (A'Sec)	Alpha Mark
R12.000.025	25Y	72V	63V	32V 24V	250mA	100A@72V	100A@63V	100A@32V 100A@24V	3700	1350	0.00038	2.5
R12.000.375					375mA				1850	720	0.00077	E
R12.000.0.5					500mA				1050	690	0.0019	B
R12.000.075					750mA				775	680	0.15	G
R12.000.1					1A				485	550	0.18	H
R12.000.1.5					1.5A				218	355	0.4	K
R12.000.2					2A				133	310	1.1	N
R12.000.2.5					2.5A				79	230	1.7	0
R12.000.3					3A				49	185	2.2	P
R12.000.3.5					3.5A				37	175	2.7	R
R12.000.4					4A				33	160	3.2	s
R12.000.4.5					4.5A				28	150	4.2	X
R12.000.5					5A				22	135	6	T
R12.000.6					6A				15.5	140	12	F
R12.000.7					7A				11.5	120	18	J
R12.000.8					8A				8.0	100	18	V
R12.000.10					10A				7.0	90	30	U
R12.000.12					12A				5.9	85	45	W
R12.000.15					15A				3.8	75	63	Y
R12.000.20					20A				2.9	70	80	Q
R12.000.25					25A				1.6	60	90	25
R12.000.30					30A				1.3	60	100	30

DC Interrupting Rating(Measured at rated voltage,time constant of less than 50 microseconds,battery source) ·DC Cold Resistance are measured at<10%of rated current in ambient temperature of 25℃

Packaging

3.000 pcs per reel

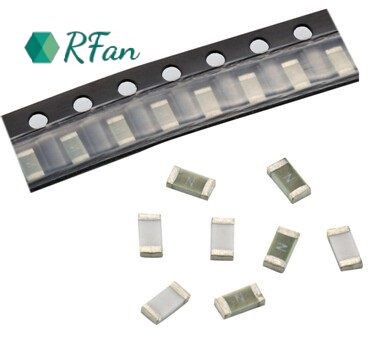

Fast Acting SMD Fuse 1206 1A 2A 3A 4A 5A 72V 63V Surface Mount Chip Fuses 0

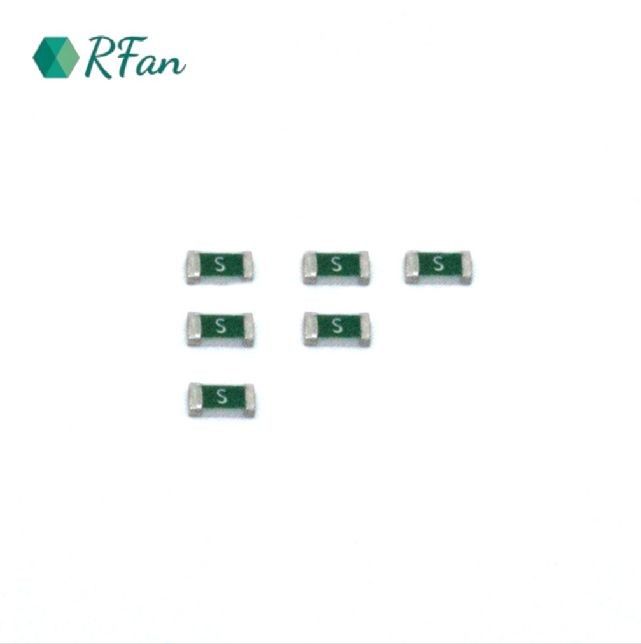

Fast Acting SMD Fuse 1206 1A 2A 3A 4A 5A 72V 63V Surface Mount Chip Fuses 1

Tag:

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.CE.TUV.ROSH
Model Number:	1206

Minimum Order Quantity:	3000
Price:	0.02-0.9
Packaging Details:	3000/Bag
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1KKpcs/month
