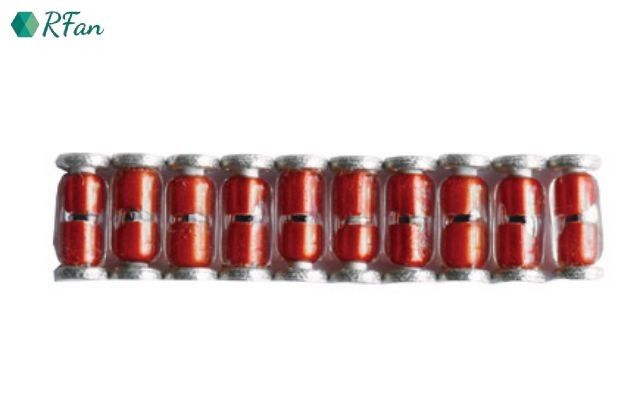

MF59 Glass Shell SMD NTC Thermistor Negative Temperature Coefficient Thermistor

MF59 Glass Shell SMD NTC Thermistor Series Negative Temperature Coefficient NTC Thermistor

Characteristics

◎Glass encapsulation,capability of operating in the bad environment of high temperature and high humidity because of the glass encapsulation framework.

◎High precision of temperature testing,good stability and broad range of resistance.

◎Small size,fast response,high sensitivity.

◎ Without leads,convenient for SMT automatic installation.

Applications

◎ Automatic work faciities (such as lap-top,copycat, printer and so on)

◎ Digital equipment(such as mobile phone,PDA and etc.)

◎Rechargeable battery (lithium battery,ni-mh battery)

◎Temperature compensation of loops of instrument,integrated circuit,quartz crystal monofier and thermocouple.

Main techno-parameter

◎(R25):0.1~1000KQ

◎ R25允 许 偏 差 : ± 1 % , ± 2 % , ± 3 % , ± 5 % , ± 1 0 % O B值允许偏差:±0.5%,±1%

◎ 耗散系数:A型≥2mW/℃ (在静止空气中), B 型≥1mW/℃ (在静止空气中)

◎ 热时间常数:A型≤10S (在静止空气中), B 型 ≤ 5S (在静止空气中)

◎ 工作温度范围: -55~220℃

◎ 25℃额定功率:A 型≤10mW,B 型≤5mW

◎ The range of resistance under the rated zero power(R25):0.1~1000KQ

◎ The allowable tolerance of R25:±1%,±2%,±3%,±5%,±10%

◎ The allowable tolerance of B value:±0.5%,±1%

◎ Dissipation factor:model A≥2mW/℃(in still air),model B≥1mW/℃ (in stll air)

◎ Thermal time constant:model A≤10S(in still air),model B≤5S(in still air)

◎ operating temperature range:-55℃~220℃

◎ Rated power at 25℃:model A≤10mW,model B≤5mW

Dimensions(unit:mm)
