Name: JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse
Brand: Yantai Rongfan Electronic Technology Co., Ltd
SKU: JK-P420
Price: 0.02 USD
Availability: InStock

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse

Basic Information

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.TUV.ROHS
Model Number:	JK-P420

Minimum Order Quantity:	1000
Price:	0.02-0.5
Packaging Details:	1000/Bag
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1KK/M

Get Best Price Contact Now

Detail Information

Agency Approvals:	UL, CSA, TUV	Operating Voltage Range:	6V - 30V
Current Rating:	0.7A - 14.1A	Rohs Compliant:	Yes
Voltage Rating:	6V - 30V
Highlight:	JK-P420 Polymer PTC Resettable Fuse , Automotive Polymer PTC Resettable Fuse , Battery Protection Polymer Fuse

Product Description

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Resettable Automotive Fuse

Features:

 Strap devices,Axial leaded

 Protection for NiCd/NiMH rechargesble battery packs,Li-ion/Polymer Li-ion battery

 Available in lead-free version

 Agency recognition:UL,CSA,TUV

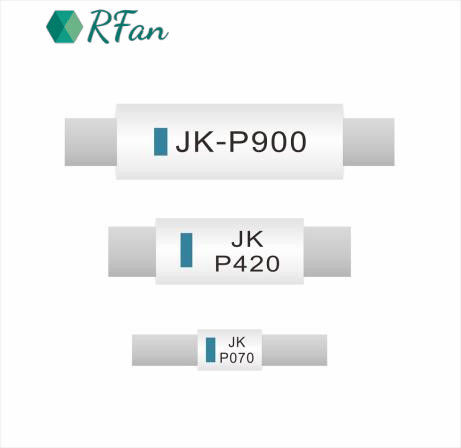

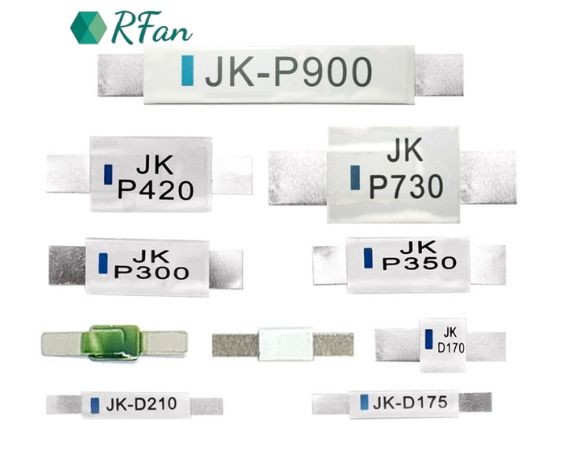

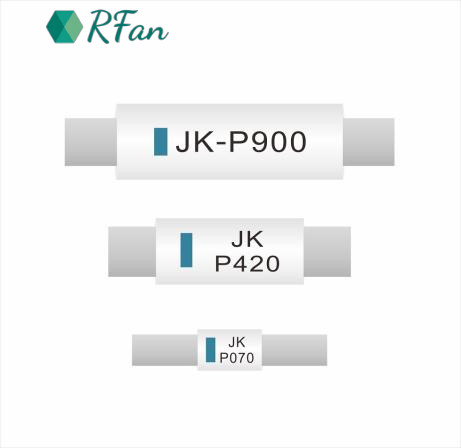

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse 0

Product Dimensions:

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse 3

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse 4

Typical Time-to-Trip Charts at 25℃

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse 7 Electrical Characteristic

JK-P420 Polymer PTC Resettable Fuse For Battery Protection Automotive Fuse 9

Electrical Specifications:

Ihold=Hold current: maximum current device will not trip in 25℃ still air.

Itrip= Trip current: minimum current device will always trip in 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current(Imax).

Imax=Maximum fault current device can withstand without damage at rated voltage(vmax).

Pd max= Power dissipated when device is in the tripped state in 25℃ still air environment at rated voltage.

Max Time-to-trip=Maximum time to trip(s) at assigned current.

Rmin=Minimum device resistance prior to tripping at 25℃.

Rmax=Maximum device resistance prior to tripping at 25℃.

R1max=Maximum device resistance one hour after it is tripped at 25℃
