Current Rating 3.0A Polyswitch Resettable Devices for Strap Battery

Basic Information

Place of Origin:	China
Brand Name:	RFan
Certification:	UL.CE.TUV.ROHS
Model Number:	LR300

Minimum Order Quantity:	1000
Price:	0.02-0.5
Packaging Details:	1000/Bag
Delivery Time:	5-7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3KK/M

Get Best Price Contact Now

Detail Information

Agency Approvals:	UL, CSA, TUV	Operating Voltage Range:	6V - 600V
Current Rating:	0.01A - 16A	Rohs Compliant:	Yes
Voltage Rating:	6V - 60V
Highlight:	3.0A Polyswitch Resettable Devices , Strap Battery Polyswitch Resettable Devices , 3.0A PPTC Resettable Devices

Product Description

Current Rating 3.0A Polyswitch Resettable Devices Strap Battery Devices

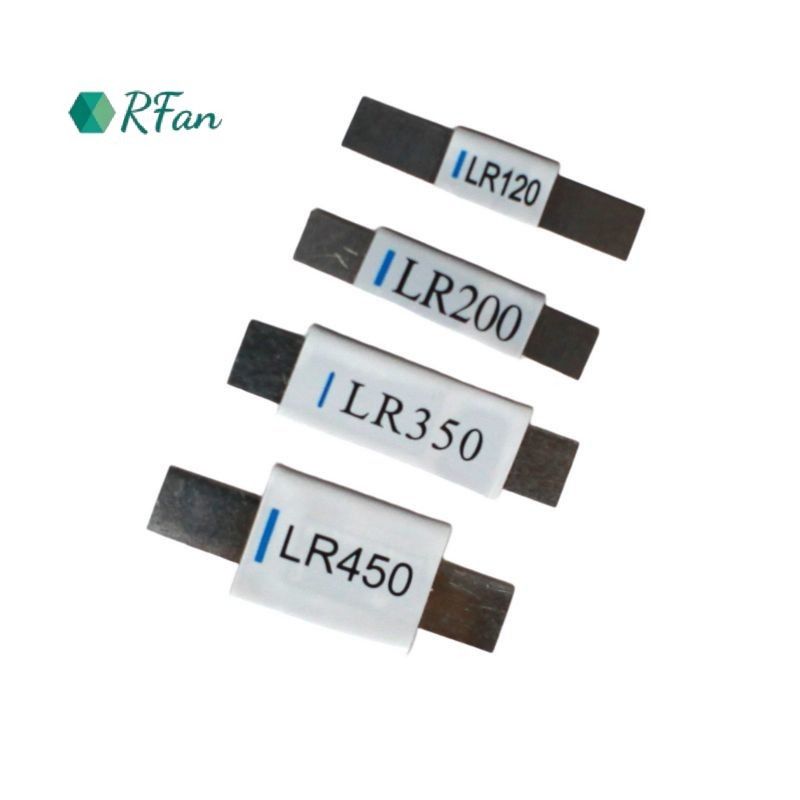

Current Rating 3.0A Polyswitch Resettable Devices for Strap Battery 0

Product Dimensions (mm)

Part No	A		B		C		D		E
Part No	Min	Max.	Min	Max.	Min.	Max.	Min.	Max.	Min.	Max.
LR300	20.5	23.5	4.6	5.6	0.4	1.0	3.5	6.0	3.8	4.2

PERFORMANCE RANTINGS

Part No	^Ihold	^Itrip	Vmax	Imax	Pd	Rmin	Rmax	R1max	Maximum Time to Trip
Part No	A	A	V	A	W	Ω	Ω	Ω	Current	time
LR300	3.0	6.0	16	100	1.6	0.015	0.030	0.060	15A	5S

IH: Hold current: maximum current device will pass without interruption in 25℃ still air unless otherwise specified .

IT: Trip current: minimum current at which the device will be tripping in 25℃ .

IMAX: Maximum current device can withstand without damage at rated voltage.

VMAX: Maximum voltage device can withstand without damage at rated current.

Pd: Typical Power dissipation: Typical amount of dissipated by the device when in state air environment.

RMIN: Minimum resistance of device as 25℃ prior to tripping..

RMAX: Maximum resistance of device at 25℃ prior to tripping..

R1max:The maximum resistance of the device at 25℃ 1 hour after being tripped.

Thermal Derating Chart-I_H(A)

Part

Maximum ambient operating temperatures(℃)

LR300
