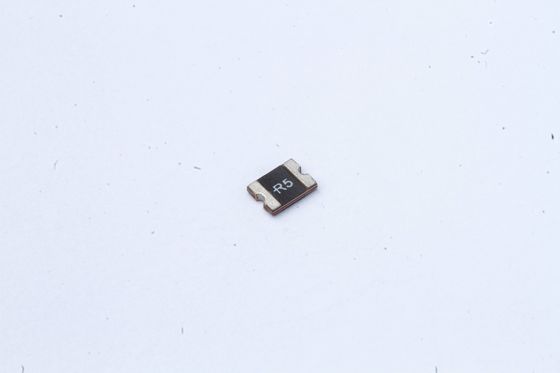

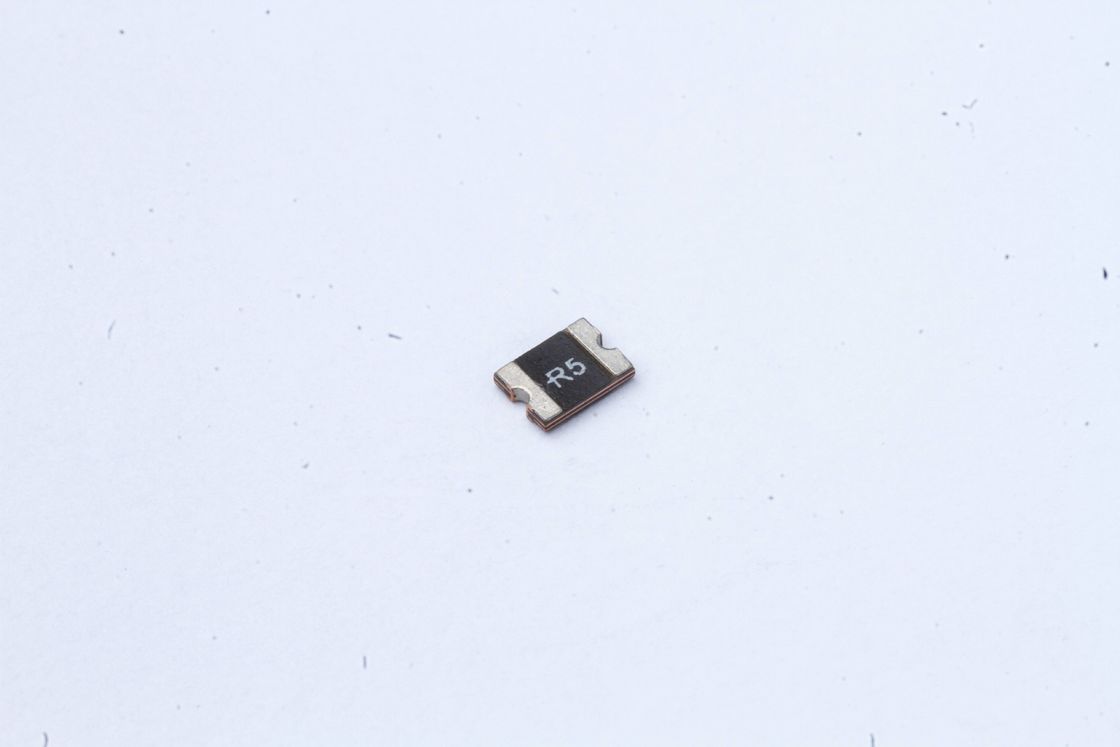

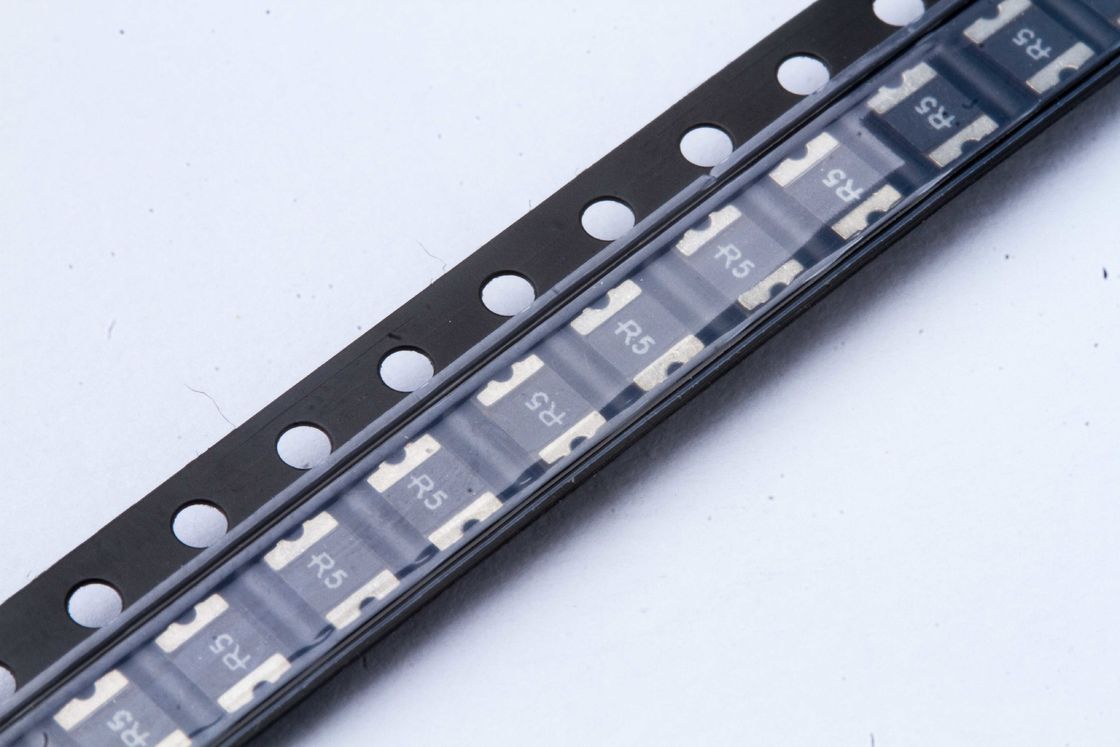

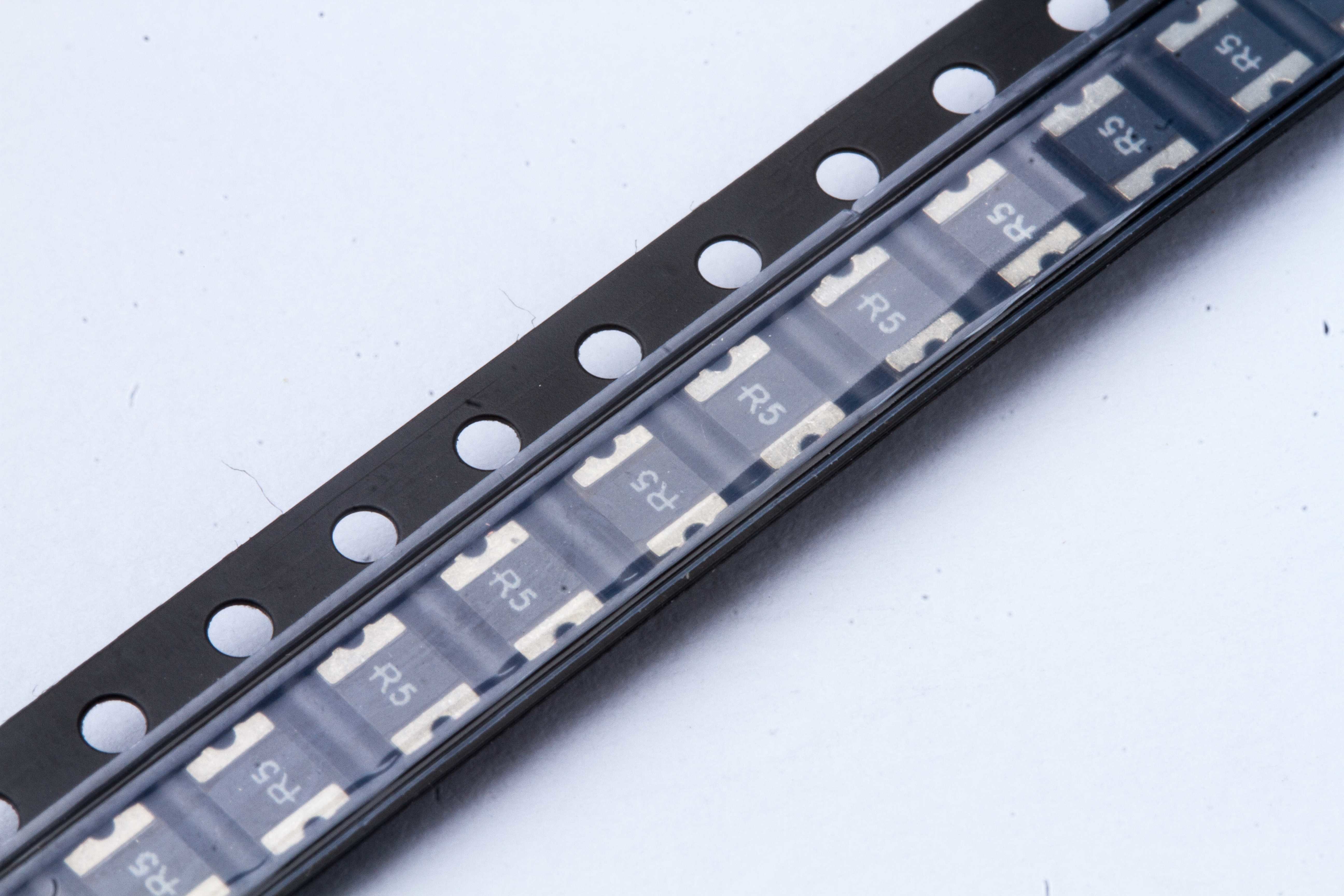

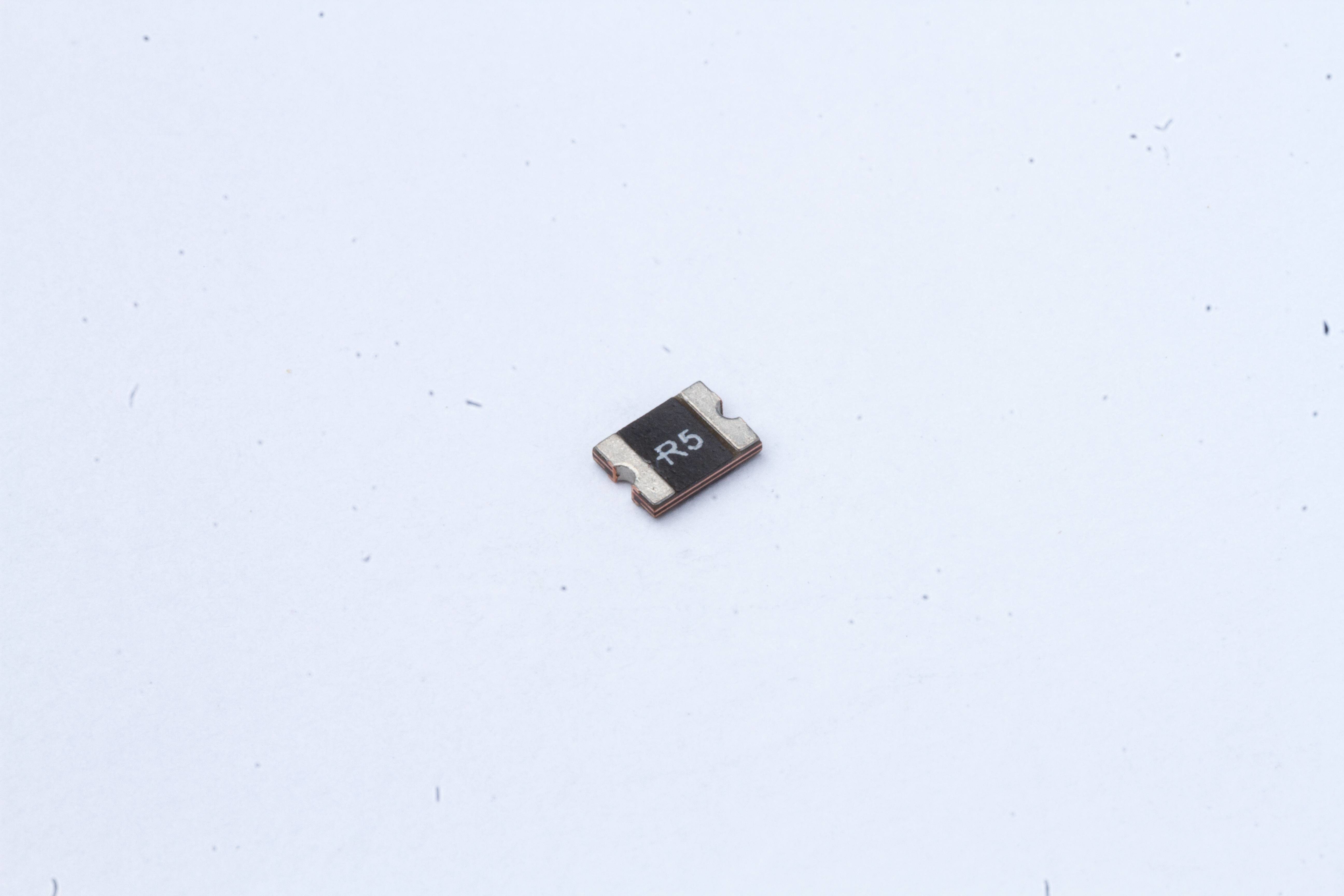

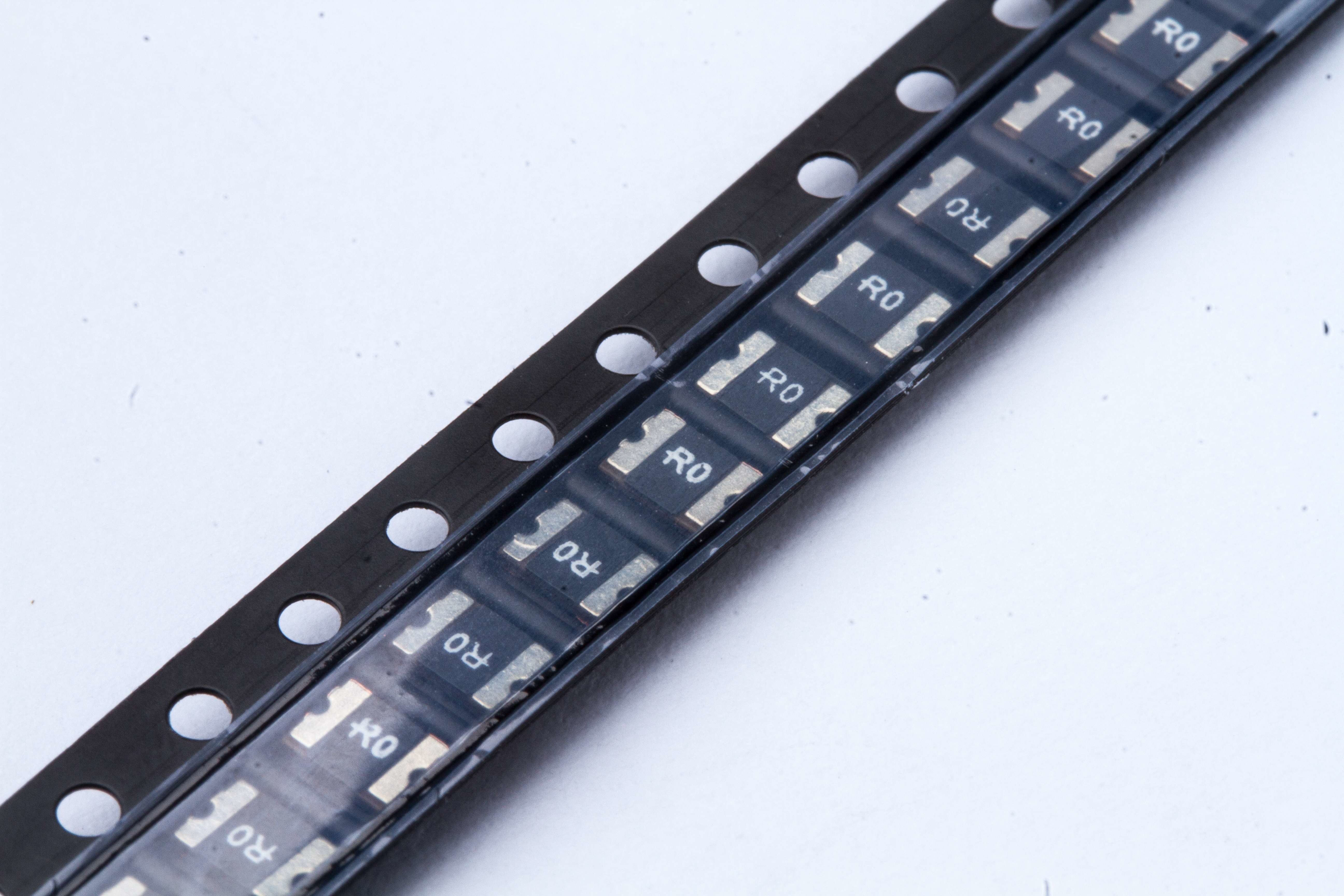

1210 1.75A PPTC Resettable Fuse / SMD Polyswitch Resettable Devices For Mobile Phone

Basic Information
Place of Origin: China
Brand Name: RFan
Certification: UL.CE.TUV.ROHS
Model Number: 1210-175
Minimum Order Quantity: 3000
Price: 0.2-0.6
Packaging Details: 4000/Bag
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1KK/M
Detail Information
Lead-Free: Yes Rated Current: 0.05A To2.0A
Maximum Resistance: 0.1Ω To 10Ω Maximum Operating Voltage: 6V To 60V
Maximum Operating Current: 0.1A To 10A Operating Temperature Range: -40°C To 85°C
Halogen-Free: Yes Resettable Fuse Type: Polymeric Positive Temperature Coefficient (PPTC)
Highlight:

1.75A PPTC Resettable Fuse

,

1.75A Polyswitch Resettable Devices

,

SMD Polyswitch Resettable Devices


Product Description

1210 1.75A PPTC Resettable Fuse / SMD Polyswitch Resettable Devices For Mobile Phone

Description



The 1210 series provides miniature suRFace mount resettable overcurrent protection

with holding current from 0.05A to 2.0A. This series is suitable for wide range of

applications in modern electronics where space is limited.



Features



■ RoHS compliant and lead-free

■ Halogen-free

■ Compact design saves board space

■ Low profile

■ Fast response to fault current

■ Compatible with high temperature solders



Applications



■ Mobile phones and PDAs

■ Battery PCM

■ USB hubs, ports and peripherals

■ Set-top-box and HDMI

■ Game console port protection

■ General electronics





Electrical Characteristics



Model



Ihold

(A)



Itrip

(A)



Vmax

(Vdc)



Imax

(A)



Pd typ.

(W)



Maximum

Time To Trip

Resistance

Current

(A)

Time

(Sec.)

Rmin

(Ω)

R1max

(Ω)

SMD1210RF005 0.05 0.15 30.0 100 0.6 0.25 1.50 2.800 50.000
SMD1210RF010 0.10 0.30 30.0 100 0.6 0.50 0.60 0.800 15.000
SMD1210RF020 0.20 0.40 30.0 100 0.6 8.0 0.02 0.400 5.000
SMD1210RF035 0.35 0.75 6.0 100 0.6 8.0 0.20 0.200 1.300
SMD1210RF035/16 0.35 0.75 16.0 100 0.6 8.0 0.20 0.200 1.300
SMD1210RF050 0.50 1.00 13.2 100 0.6 8.0 0.10 0.180 0.900
SMD1210RF050/24 0.50 1.00 24.0 100 0.6 8.0 0.10 0.180 0.900
SMD1210RF075 0.75 1.50 6.0 100 0.6 8.0 0.10 0.070 0.400
SMD1210RF075/16 0.75 1.50 16.0 100 0.6 8.0 0.10 0.070 0.400
SMD1210RF110 1.10 2.20 6.0 100 0.6 8.0 0.30 0.050 0.210
SMD1210RF150 1.50 3.00 6.0 100 0.6 8.0 0.50 0.030 0.110
SMD1210RF150/12 1.50 3.00 12.0 100 0.6 8.0 0.50 0.030 0.110
SMD1210RF175 1.75 3.50 6.0 100 0.8 8.0 0.60 0.020 0.080
SMD1210RF200 2.00 4.00 6.0 100 0.8 8.0 1.00 0.015 0.070
SMD1210RF260 2.60 5.20 6.0 100 0.8 8.0 2.00 0.010 0.060








Note on Electrical Characteristics

■ Vocabulary

·Ihold = Hold current: maximum current device will pass without tripping in 23℃ still air.

·Itrip = Trip current: minimum current at which the device will trip in 23℃ still air.

·Vmax = Maximum voltage device can withstand without damage at rated current (Imax)

·Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax)

·Pd typ. = Typical power dissipated from device when in the tripped state at 23℃ still air.

·Rmin = Minimum resistance of device in initial (un-soldered) state.

·R1max = Maximum resistance of device at 23℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec.

■ Value specified is determined by using the PWB with 0.030”*1.5oz copper traces.

■ Caution: Operation beyond the specified rating may result in damage and possible arcing and flame.

■ Specifications are subject to change without notice.



Polymeric PTC Selecting Guide



■ Determine the following operating parameters for the circuits:

·Normal operating current (Ihold) ·Maximum interrupt current (Imax)
·Maximum circuit voltage (Vmax) ·Normal operating temperature surrounding device (min℃/max℃)


■ Select the device from factor and dimension suitable for the application

■ Compare the maximum rating for Vmax and Imax of the PPTC device with the circuit in application and make sure

the circuit’s requirement does not exceed the device rating.

■ Check that PPTC device’s trip time (time-to-trip) will protect the circuit.

■ Verify that the circuit operating temperature is within the PPTC device’s normal operating temperature range.

■ Verify that peRFormance and suitability of the chosen PPTC device in the application.

■ Mechanical Stress

·PPTC devices will undergo a thermal expansion during fault condition. If PPTC devices are installed or placed in an application

where the space between PPTC devices and the surrounding materials (e.g., covering materials, packaging materials, encapsulate

materials and the like) is insufficient, it will cause an inhibiting effect upon the thermal expansion. Pressing, twisting, bending and

other kinds of mechanical stress will also adversely affect the peRFormance of the PPTC devices, and shall not be used or applied.

■ Chemical Pollutants

·Silicone-based oils, oils, solvents, gels, electrolytes, fuels, acids, and the like will adversely affect the properties of PPTC devices,

and shall not be used or applied.

■ Electronic and Thermal Effect

·PPTC devices are secondary protection devices and are used solely for sporadic, accidental over-current or over-temperature

error condition, and shall NOT be used if or when constant or repeated fault conditions (such fault conditions may be caused by,

among others, incorrect pin-connection of a connector) or over-extensive trip events may occur.

·PPTC devices are different from fuses and, when a fault condition occurs, will go into high-resistance state and do not open

circuit, in which case the voltage at such PPTC devices may reach a hazardous level.

·Operation over the maximum rating or other forms of improper use may cause failure, arcing, flame and/or other damage to

the PPTC devices.

·Conductive material contamination, such as metal particle, may induce shortage, flame or arcing.

·Due to the inductance, the operation circuits may generate a circuit voltage (Ldi/dt) above the rated voltage of PPTC devices,

which shall not be used under such circumstances.

■ General

·Customers shall evaluate and test the properties of PPTC devices independently to verify and ensure that their individual

applications will be met.

·The peRFormance of PPTC devices will be adversely affected if they are improperly used under electronic, thermal and/or

mechanical procedures and/or conditions non-conformant to those recommended by manufacturer.

·Customers shall be responsible for determining whether it is necessary to have back-up, failsafe and/or fool-proof protection

To avoid or minimize damage that may result from extra-ordinary, irregular function or failure of PPTC devices.

·Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.

Thermal Derating Chart



Recommended Hold Current (A) at Ambient Temperature (℃)

Model Ambient Operation Temperature
-40°C -20°C 0°C 23°C 40°C 50°C 60°C 70°C 85°C
SMD1210RF005 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02
SMD1210RF010 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03
SMD1210RF020 0.29 0.26 0.22 0.20 0.16 0.14 0.13 0.11 0.08
SMD1210RF035 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18
SMD1210RF050 0.76 0.67 0.58 0.50 0.43 0.40 0.36 0.32 0.28
SMD1210RF075 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40
SMD1210RF110 1.69 1.48 1.29 1.10 0.88 0.76 0.65 0.57 0.43
SMD1210RF150 2.13 1.92 1.71 1.50 1.26 1.14 1.01 0.89 0.71
SMD1210RF175 2.54 2.30 2.02 1.75 1.47 1.33 1.18 1.05 0.86
SMD1210RF200 2.90 2.63 2.31 2.00 1.68 1.52 1.35 1.20 0.98
SMD1210RF260 3.43 3.22 2.93 2.60 2.23 2.03 1.87 1.57 1.35



Average Time-Current Curve

1210 1.75A PPTC Resettable Fuse / SMD Polyswitch Resettable Devices For Mobile Phone 0
